Product Highlights
- Thermal Resolution (pixels): 384 × 288
- Pixel Pitch (µm): 12
- NETD (mK): <25
- Base Magnification (x): 3.5
- Magnification Range (x): 3.5 to 14

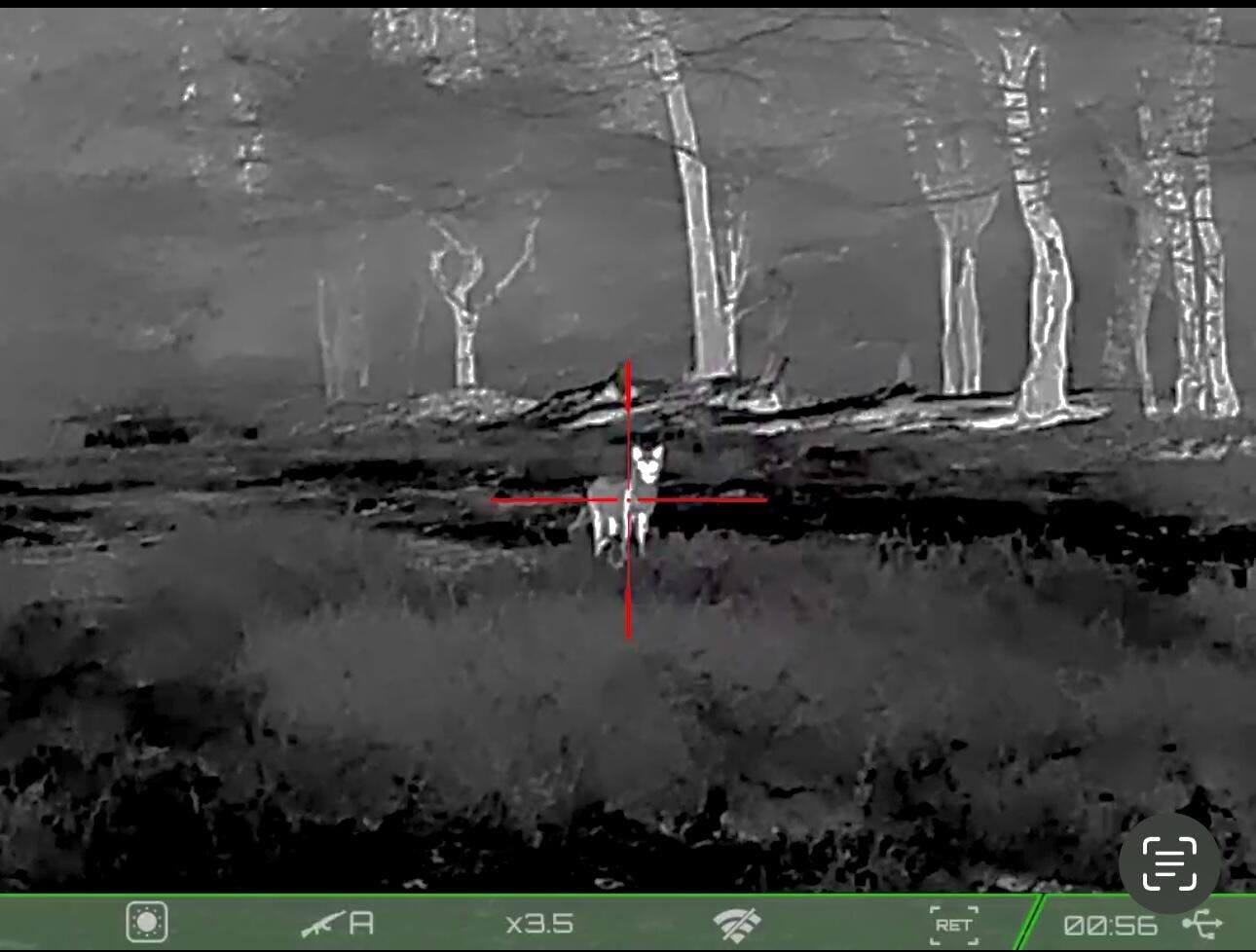

The STORM S3 (384 x 288 resolution) provides a clear and consistent view during observations. With Resolution Enhanced Technology (RET), the STORM doubles the pixels and utilizes advanced AI algorithms to optimize the content of these added pixels. This results in a significantly clearer and more detailed picture, enhancing your outdoor observations, and hunting experiences.
After zeroing, the return to center (RTC) function will automatically reposition the reticle closer to the center of the x-axis and y-axis. If the deviation from the center position is minimal, it can even realign the reticle directly to the center, enabling you to have a more comfortable field of view and making it easier to maintain focus on the target. The STORM also allows you to adjust the magnification level of the Picture-in-Picture (PIP) image independently, enabling users to maintain awareness of the surroundings and improve shooting accuracy using the PIP function.
An intuitive operating system results in each function corresponding to a single button. No need to scroll through menus to find the desired function. The device's buttons are directly mapped to the user interface (UI), so when you press a button, the corresponding function on the UI lights up, providing a clear indication of which function you have triggered. Additionally, these four buttons can also be used as directional keys, allowing for convenient zeroing.
Thermal Sensor | Sensor Type | VOx Uncooled |
Resolution (pixels) | 384 × 288 | |
Pixel Pitch (µm) | 12 | |
NETD (mK) | <25 | |
Frame Rate (Hz) | 50 | |
Detection Range (yd) | 1,968 | |
Optics | Objective Lens (mm) | 35 |
Magnification Range (x) | 3.5 to 14 | |
Digital Zoom (x) | 1 to 4 | |
Field of View (H) @ 100m (degrees / m) | 7.5 / 12 | |
Eye relief (mm) | 48 | |
Rangefinder | Rangefinder Type | N/A |
Maximum Measuring Range (y) | N/A | |
Measurement Accuracy (y) | N/A | |
Display | Display Type | OLED |
Display Resolution (pixels) | 1024 × 768 | |
Audio/Video | Audio Recording Capable | Yes |
Video Recording Capable | Yes | |
Video/Photo Resolution (pixel) | 1024 × 768 | |
Built-in Memory (GB) | 32 | |
Wi-Fi | Wireless Protocol | WI-FI |
Environmental Characteristics |
Degree of Protection (IP Code) | IP67 |
Operating Temperature Range (°F) | -4 to+122 | |
Power Supply | Battery Type | 18650 |
Operating Time on Battery Pack (hr) | 6 | |
External Power Supply (V) | 5 (USB-C) | |
Weight & Size | Dimensions (inch) | 5.3 × 2.5 × 2.2 |
Weight (lb) | 0.97 |
