Product Highlights
- Resolution (pixels): 256 × 192
- Pixel Pitch (µm): 12
- NETD (mK): <18
- Base Magnification (x): 2
- Digital Zoom: 4

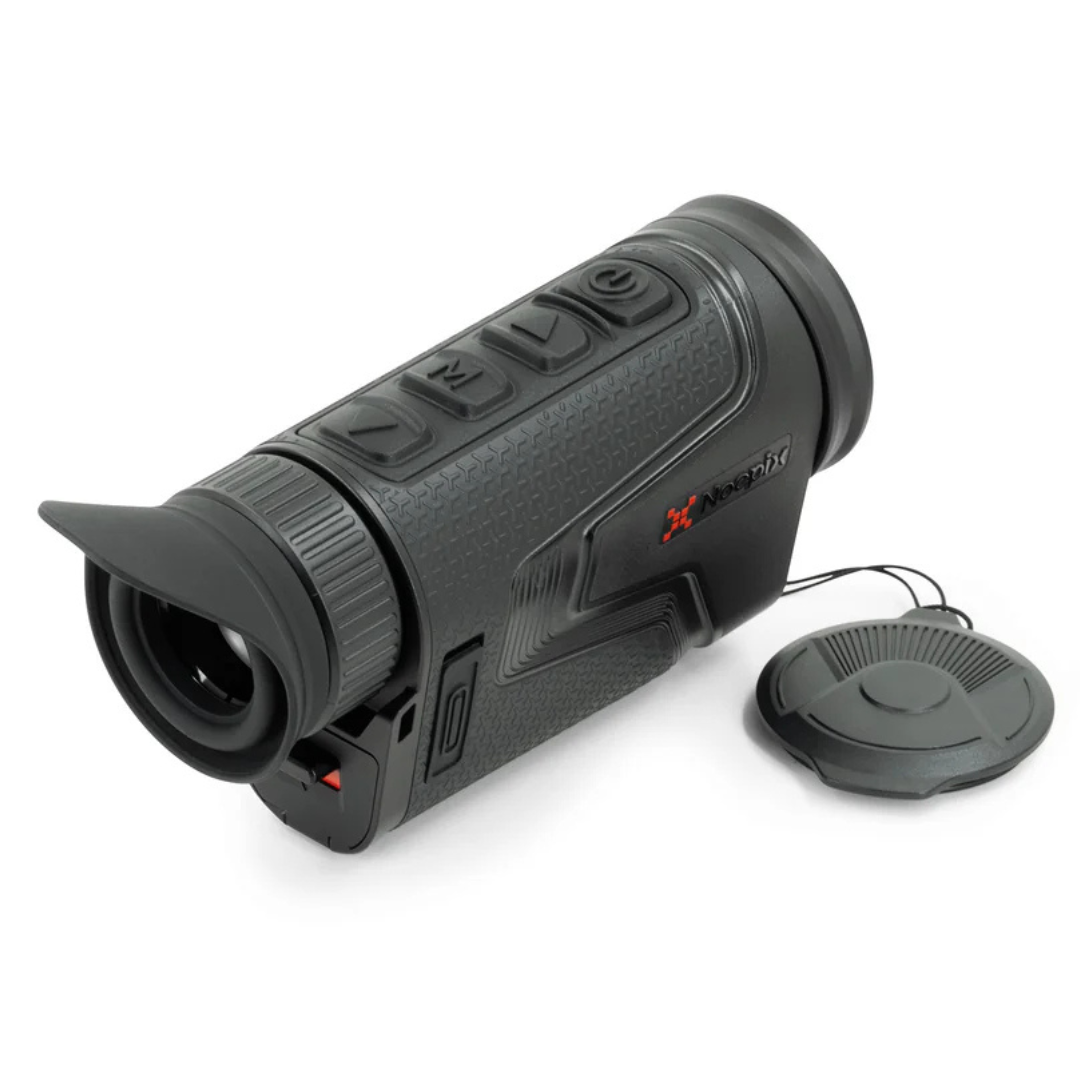

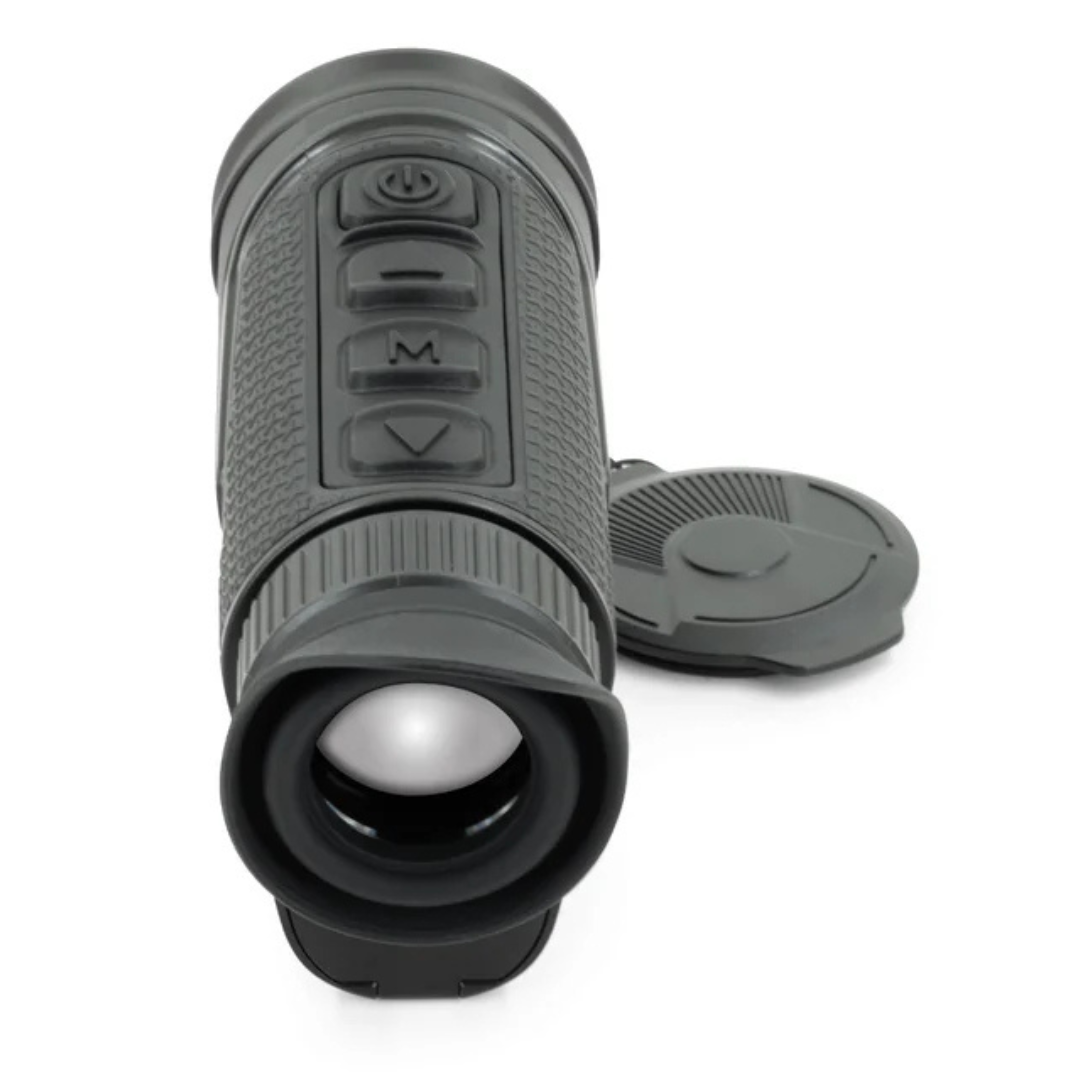

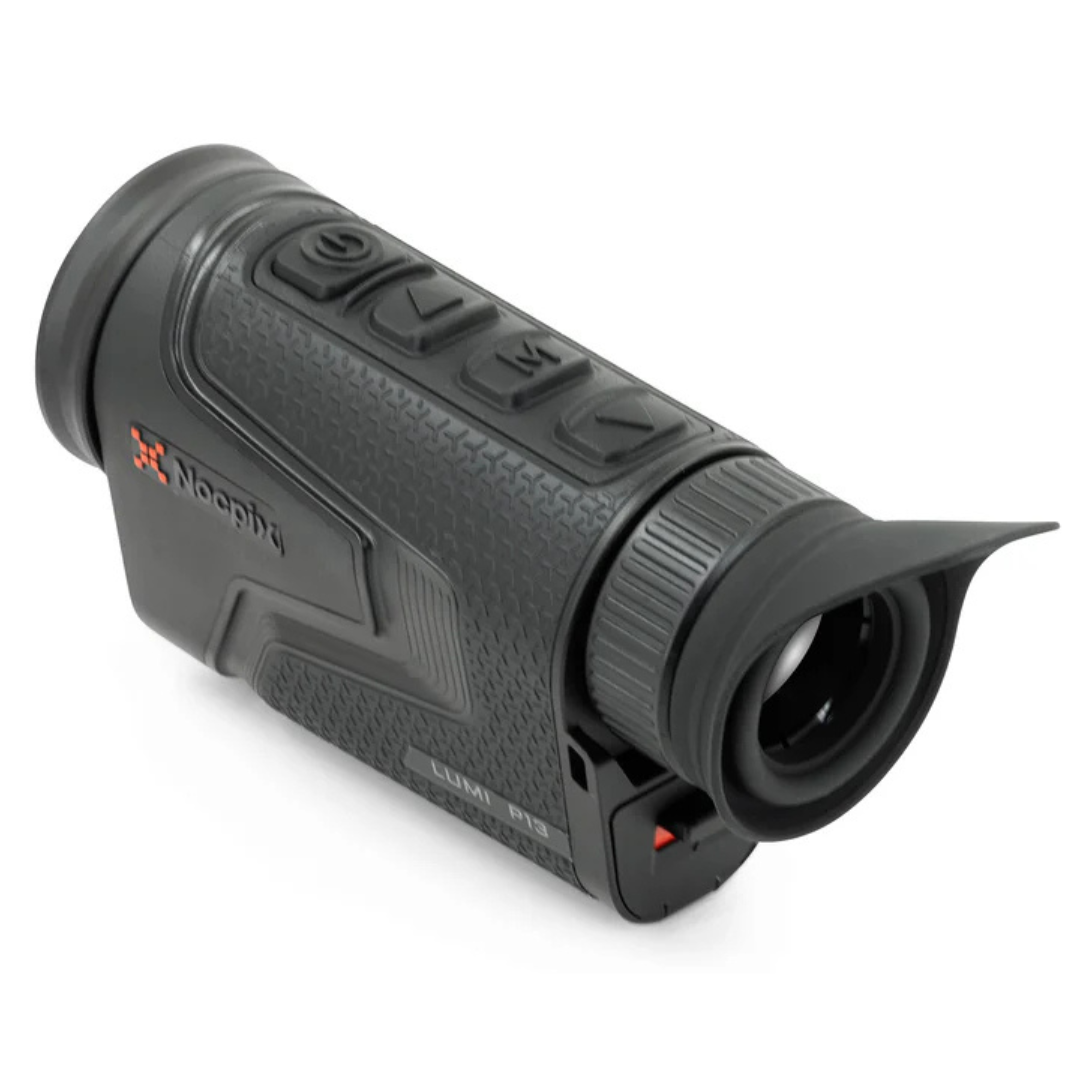

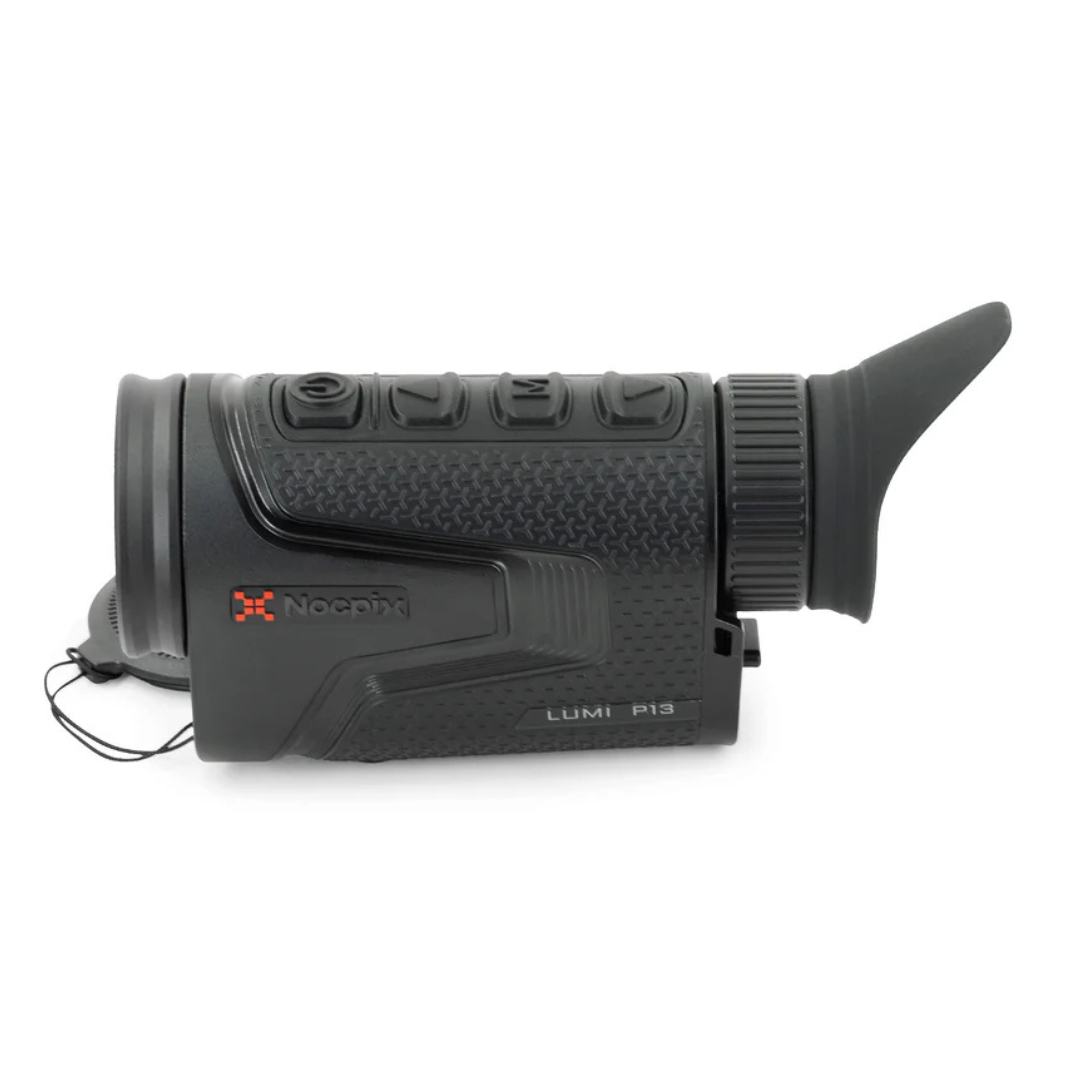

LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The all-new LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 256×192 (P13), 384×288 (L19, L35) or 640×512 (H35) paired with a 1024×768 AMOLED display. This selection provides users with a wide range of resolution and native (base) magnification options. The advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.
- Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
- Weatherproof rubberized texture increases durability and is not cold to the touch.
- Powered by a common 18650 style rechargeable battery with a spare battery included.
- Advanced R+ image processing enhances image quality during digital zoom.
- Onboard photo, video, and audio recording.
- Comfortable ambidextrous vertical design.
| Thermal Sensor | Sensor Type | Nocpix 256 |
| Resolution (pixels) | 256 × 192 | |
| Pixel Pitch (µm) | 12 | |
| NETD (mK) | <18 | |
| Frame Rate (Hz) | 50 | |
| Detection Range (yards) | 1,070 | |
| Optics | Objective Lens (mm) | 13 |
| Base Magnification (x) | 2 | |
| Digital Zoom | 4 | |
| Field of View (HxV) @ 100m (degrees) | 13.5 × 10.1 | |
| Rangefinder | Rangefinder Type | N/A |
| Maximum Measuring Range (y) | N/A | |
| Measurement Accuracy (y) | N/A | |
| Display | Display Type | AMOLED |
| Display Resolution (pixels) | 1024 × 768 | |
| Audio/Video | Audio Recording Capable | Yes |
| Video Recording Capable | Yes | |
| Built-in Memory (GB) | 32 | |
| Wi-Fi | Wireless Protocol | Yes |
|
Environmental Characteristics |
Degree of Protection (IP Code) | IP67 |
| Operating Temperature Range (°F) | -4 to 122 | |
| Power Supply | Battery Type | USB-C External, 18650 (2) |
| Operating Time on Battery Pack (hr) | 4+ (each) | |
| External Power Supply | USB-C | |
| Weight & Size | Dimensions (inch) | 5.5 × 1.9 × 2.9 |
| Weight (lb) | 0.8 |
