Product Highlights
- Thermal Resolution (pixels): 384 x 288
- Pixel Pitch (µm): 12
- NETD (mK): <20
- Base Magnification (x): 3.5

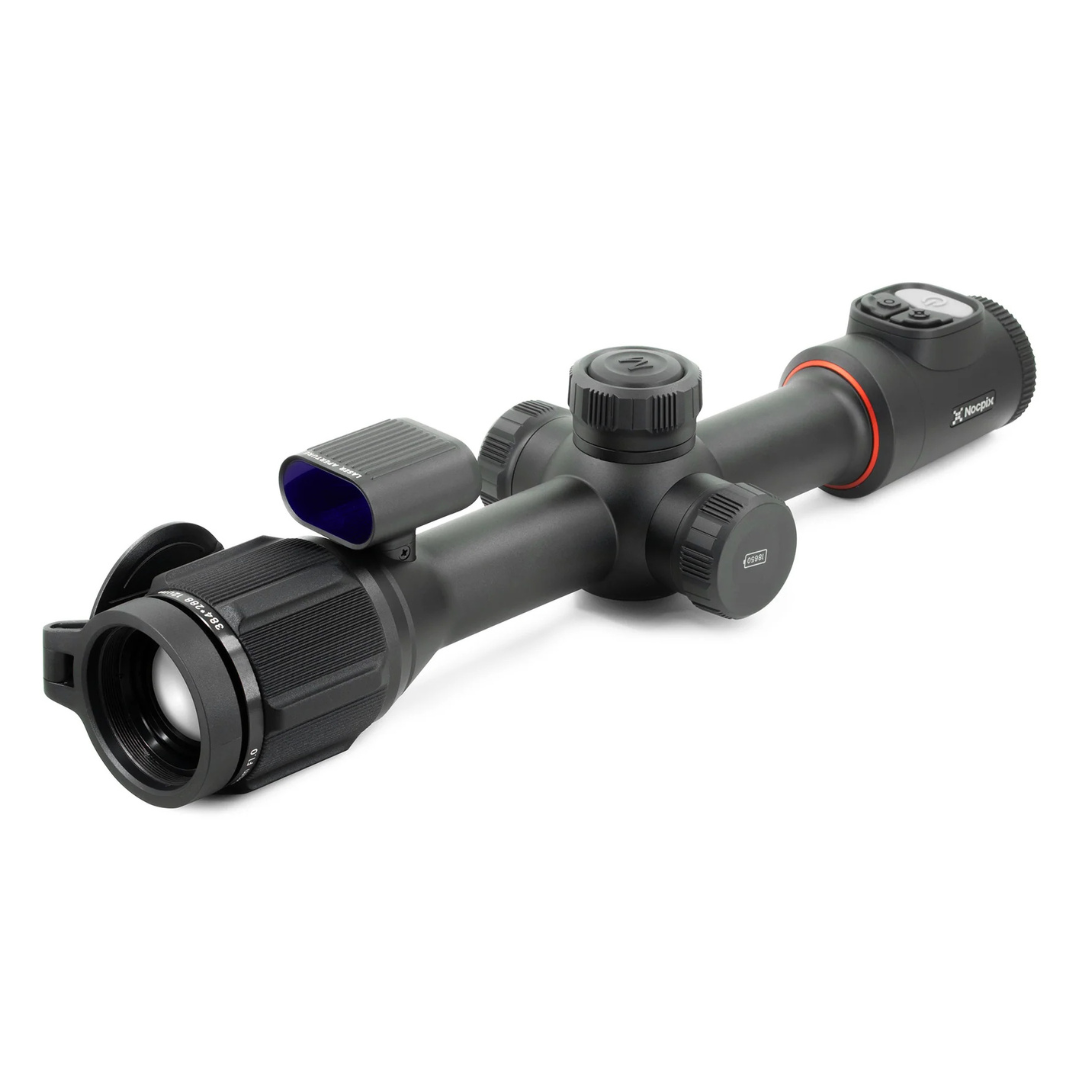

The BOLT L35R is a no-nonsense thermal weapon sight built for hunters who demand reliability and real-world performance. At its core is a 384×288 12 μm sensor paired with a crisp 35 mm F1.0 lens, offering excellent image clarity and a detection range of up to 1,800 yards. The 1024×768 AMOLED display provides sharp, smooth visuals, even in the worst conditions.
Our customers asked for an affordable thermal scope with a built-in laser rangefinder—we delivered. The onboard LRF gives fast, accurate distance-to-target data, helping you make more confident, ethical shots when it counts.
With built-in photo and video recording (with audio), WiFi connectivity, multiple zeroing profiles, and standard 18650 battery compatibility for up to 6.5 hours of total runtime, the L35R is packed with features designed for serious hunters. It mounts easily using standard 30mm rings and is housed in a rugged, IP67-rated aluminum body.
Whether you’re scanning tree lines for coyotes or clearing fields of hogs, the BOLT L35R gives you the clarity, range, and confidence you need—at a price that makes sense.
| Thermal Sensor | Sensor Type | Nocpix 384 |
| Resolution (pixels) | 384 × 288 | |
| Pixel Pitch (µm) | 12 | |
| NETD (mK) | <20 | |
| Frame Rate (Hz) | 50 | |
| Detection Range (yd) | 1,950 | |
| Optics | Objective Lens (mm) | 35 |
| Magnification Range (x) | 3.5 to 14 | |
| Digital Zoom (x) | 1 to 4 | |
| Field of View (HxV) @ 100m (degrees) | 7.5 / 5.7 | |
| Eye relief (mm) | 50 | |
| Rangefinder | Rangefinder Type | Integrated |
| Maximum Measuring Range (y) | 1,300 | |
| Measurement Accuracy (y) | +/-1 | |
| Display | Display Type | AMOLED |
| Display Resolution (pixels) | 1024 × 768 | |
| Audio/Video | Audio Recording Capable | Yes |
| Video Recording Capable | Yes | |
| Video/Photo Resolution (pixel) | 1024 × 768 | |
| Built-in Memory (GB) | 32 | |
| Wi-Fi | Wireless Protocol | Yes |
|
Environmental Characteristics |
Degree of Protection (IP Code) | IP67 |
| Operating Temperature Range (°F) | -4 to 122 | |
| Power Supply | Battery Type | 18650 |
| Operating Time on Battery Pack (hr) | 5 | |
| External Power Supply (V) | USB-C | |
| Weight & Size | Dimensions (inch) | 14.8 x 3.6 x 3.0 |
| Weight (lb) | 1.95 |
