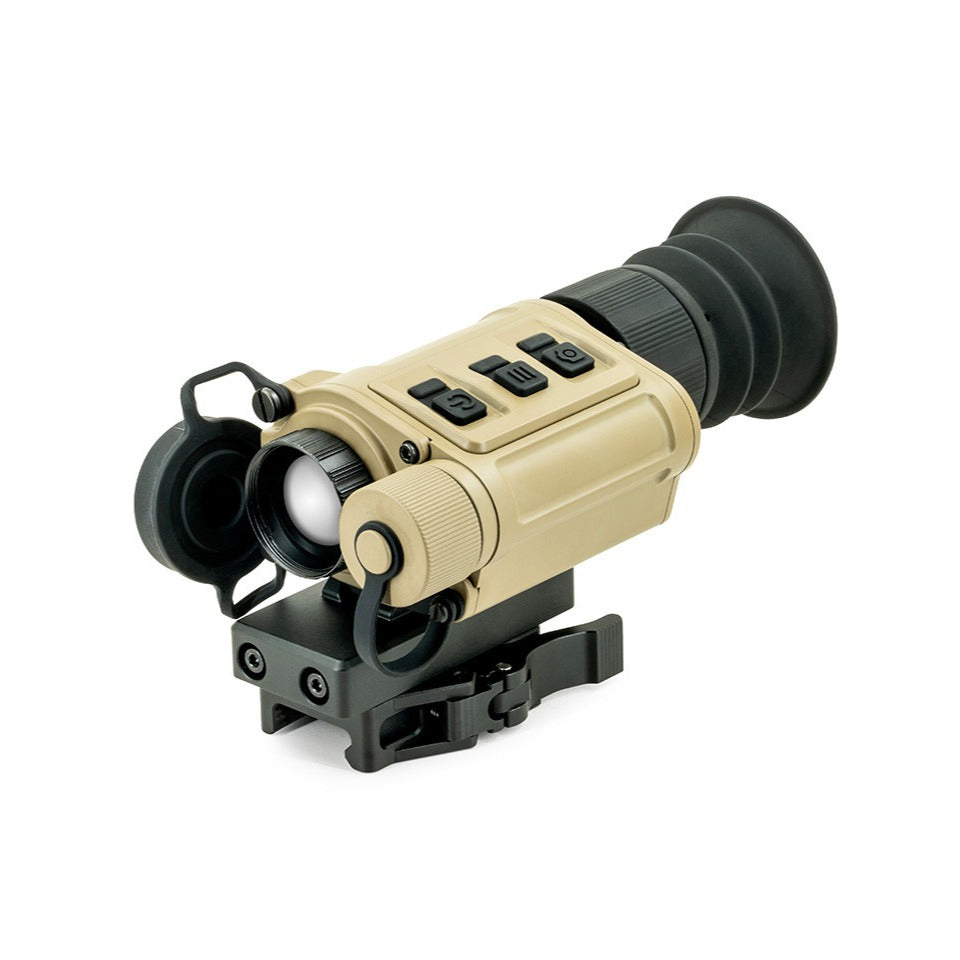

InfiRay Outdoor :: RICO MICRO RH25 V2
InfiRay Outdoor :: RICO MICRO RH25 V2
Couldn't load pickup availability
Product Highlights
- Thermal Resolution (pixels): 640 × 480
- Pixel Pitch (µm): 12
- NETD (mK): <15
- Base Magnification (x): 1.36
In its second generation, the RICO MICRO RH25 V2 has been updated to provide users with powerful enhancements while retaining the versatility users love. Use it as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on. New model features a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO V2 from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440 x 1080 AMOLED display is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification. The MICRO V2 also uses InfiRay’s latest 12 μm sensor, an improved NETD rating of <15mK, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.
It retains the same form factor and versatility with some added upgrades to the V2 model, including a larger display and eyepiece, providing over 90% more pixels on an 80% larger viewable area. This provides a more comfortable viewing experience and improved clip-on compatibility with day optics up to 6× magnification.
| Thermal Sensor | Sensor Type | InfiRay MICRO II |
| Resolution (pixels) | 640 × 480 | |
| Pixel Pitch (µm) | 12 | |
| NETD (mK) | <15 | |
| Frame Rate (Hz) | 60 | |
| Detection Range (yd) | 1,375 | |
| Optics | Objective Lens (mm) | 25 |
| Base Magnification (x) | 1.36 | |
| Digital Zoom (x) | 4 | |
| Field of View (HxV) @ 100m (degrees / m) | 17.5 × 13.1 | |
| Eye relief (mm) | 45 | |
| Rangefinder | Rangefinder Type | N/A |
| Maximum Measuring Range (y) | N/A | |
| Measurement Accuracy (y) | N/A | |
| Display | Display Type | AMOLED |
| Display Resolution (pixels) | 1440 × 1080 | |
| Audio/Video | Audio Recording Capable | Yes |
| Video Recording Capable | Yes | |
| Built-in Memory (GB) | 64 | |
| Wi-Fi | Wireless Protocol | Yes |
|
Environmental Characteristics |
Degree of Protection (IP Code) | IP67 |
| Operating Temperature Range (°F) | -4 to 122 | |
| Power Supply | Battery Type | 18650 |
| Operating Time on Battery Pack (hr) | 5.5+ | |
| External Power Supply (V) | USB-C | |
| Weight & Size | Dimensions (inch) | 4.5 x 2.6 x 1.9 |
| Weight (lb) | 0.7 |
Share
Excellent detection range and the flexibility of this unit makes the price tag worth it. Currently mounted in front of a ATACR 1-8 in a 1.93 height, the RH25V2 sits perfectly in front of it when used as a clip on. When used in this configuration, adjust your focus and clarity when it’s mounted for the best parallax reduction. IRAY walked me through centering the screen to get my daylight optic hitting the same through the thermal image. Solid optic through a solid company!
