Product Highlights
- Thermal Resolution (pixels): 640 × 480
- Pixel Pitch (µm): 12
- NETD (mK): <40
- Base Magnification (x): 3

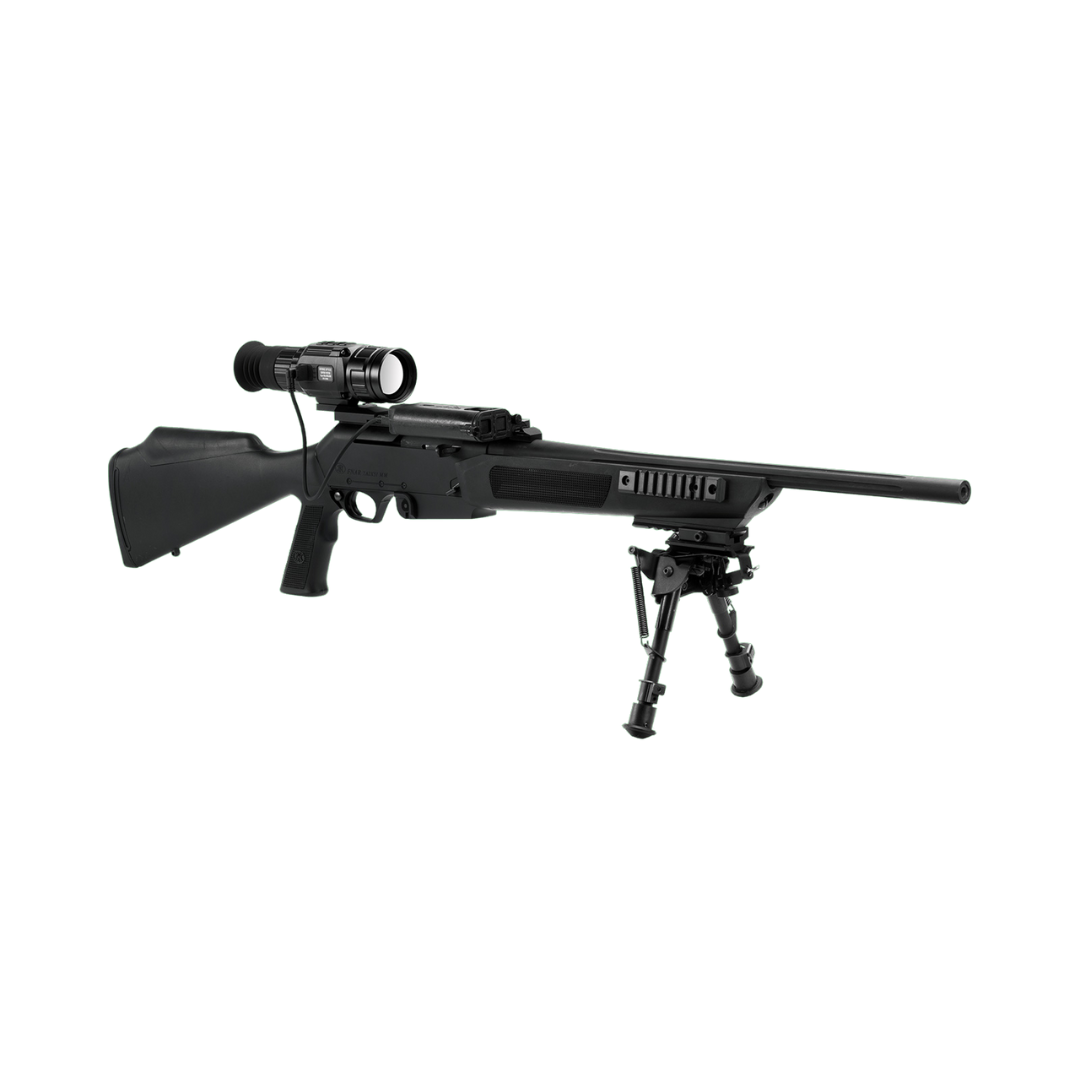

The SUPER YOTER R 3.0 thermal weapon sight features the advanced 12μm Vanadium Oxide (VOx) 640 x 480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. There are 8 reticle patterns including 3 bullet drop compensator (BDC) reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options. Other useful features include a wide selection of the image adjustment options as well as the image background adjustment and calibration. The SUPER YOTER R is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for 0.338 Win Mag., 30-06 Spring Mag.
| Thermal Sensor | Sensor Type | VOx Uncooled |
| Resolution (pixels) | 640 × 480 | |
| Pixel Pitch (µm) | 12 | |
| NETD (mK) | <40 | |
| Frame Rate (Hz) | 50 | |
| Detection Range (y) | 1,650 | |
| Optics | Objective Lens (mm) | 50 |
| Base Magnification (x) | 3 | |
| Digital Zoom (x) | 2 to 4 | |
| Field of View (HxV) @ 100m (degrees / m) | 8.5 × 6.4 | |
| Eye relief (mm) | 46 | |
| Rangefinder | Rangefinder Type | Stradiametric |
| Maximum Measuring Range (y) | N/A | |
| Measurement Accuracy (y) | N/A | |
| Display | Display Type | OLED |
| Display Resolution (pixels) | 1024 × 768 | |
| Audio/Video | Audio Recording Capable | Yes |
| Video Recording Capable | Yes | |
| Built-in Memory (GB) | 32 | |
| Wi-Fi | Wireless Protocol | Yes |
|
Environmental Characteristics |
Degree of Protection (IP Code) | IP66 |
| Operating Temperature Range (°F) | -14 to 122 | |
| Power Supply | Battery Type | (3) CR123 or (2) 16650 or 5V DC (USB C-type) |
| Operating Time on Battery Pack (hr) | 3.5 w/ (3) CR123 | |
| External Power Supply (V) | USB-C | |
| Weight & Size | Dimensions (in) | 8.5 x 3.2 x 2.4 |
| Weight (lb) | 1.3 |
