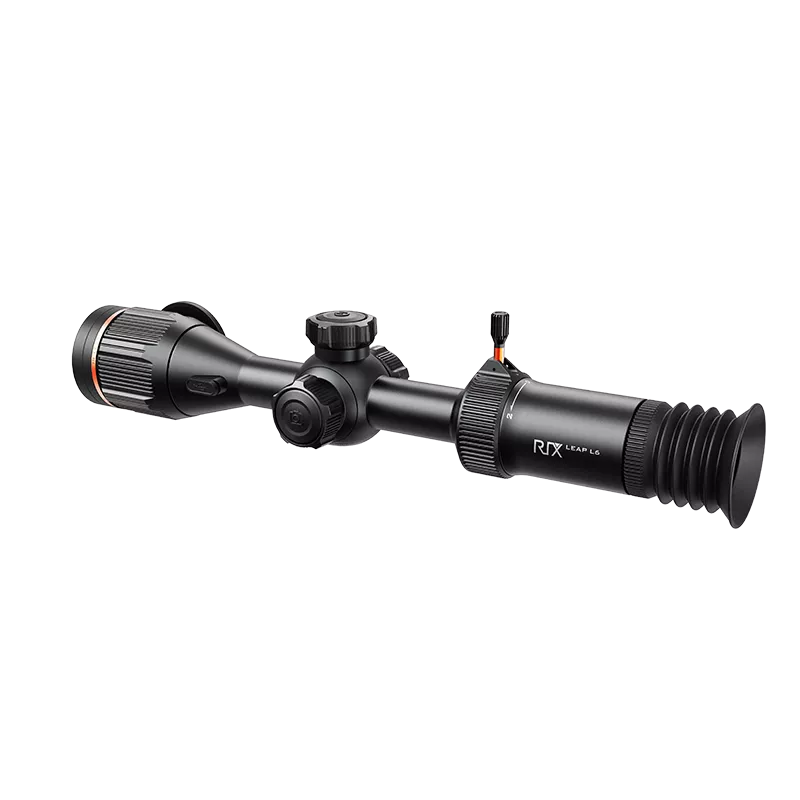

RIX’s LEAP Series is theWorld’s First Continuous Optical Zoom Thermal Scope
Product Highlights
Thermal Resolution (pixels): 640x360
Pixel Pitch (µm): 12
NETD (mK): <25
Base Magnification (x): 2.8
Magnification Range (x): 2.8 to 8.4
Digital Zoom: 1 to 4
Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness.
The LEAP series features a 30mm standard tube diameter for easy mounting and offers a range of features, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options. Experience the ultimate hunting companion with the LEAP series.
Unleash the power of enhanced magnification with the RIX Leap Series optical zoom feature. Unlike electronic zoom, it offers a noticeably clearer and smoother zooming process, delivering a lifelike magnification effect and an exceptional operational experience. Combining it with electronic zoom expands your horizons, while offering a broader range of magnification options.
Thermal Sensor
Sensor Type
VOx Uncooled
Resolution (pixels)
640x360
Pixel Pitch (µm)
12
NETD (mK)
<25
Frame Rate (Hz)
50
Detection Range (yards)
2600
Optics
Objective Lens (mm)
50
Magnification Range (x)
2.8 to 8.4
Digital Zoom (x)
1 to 4
Fieid of View (H) @ 100m (degrees / m)
8.8 / 15.4
Eye relief (mm)
50
Rangefinder
Rangefinder Type
Stadiametric
Maximum Measuring Range (m)
N/A
Measurement Accuracy (m)
N/A
Display
Display Type
OLED
Display Resolution (pixels)
1920×1080
Audio/Video Recording
Audio Recording Capable
Yes
Video Recording Capable
Yes
Video/Photo Resolution (pixel)
960×720
Video/Photo Format
.mp4 /.jpg
Built-in Memory (GB)
32
Wi-Fi
Wireless Protocol
Wi-Fi
Frequency (GHz)
2.4
Environmental Characteristics
Degree of Protection (IP Code)
IP67
Operating Temperature Range (°F)
-4 to 122
Power Supply
Battery Type
18650
Capacity (mAh)
3200
Operating Time on Battery Pack @ 71.6°F (hr)
8
External Power Supply
5V (Type C USB)
Weight & Size
Dimensions (inch)
14.6×3.5×3
Weight (lb)
2.6
** Please note, there is a one week lead time for this item **
