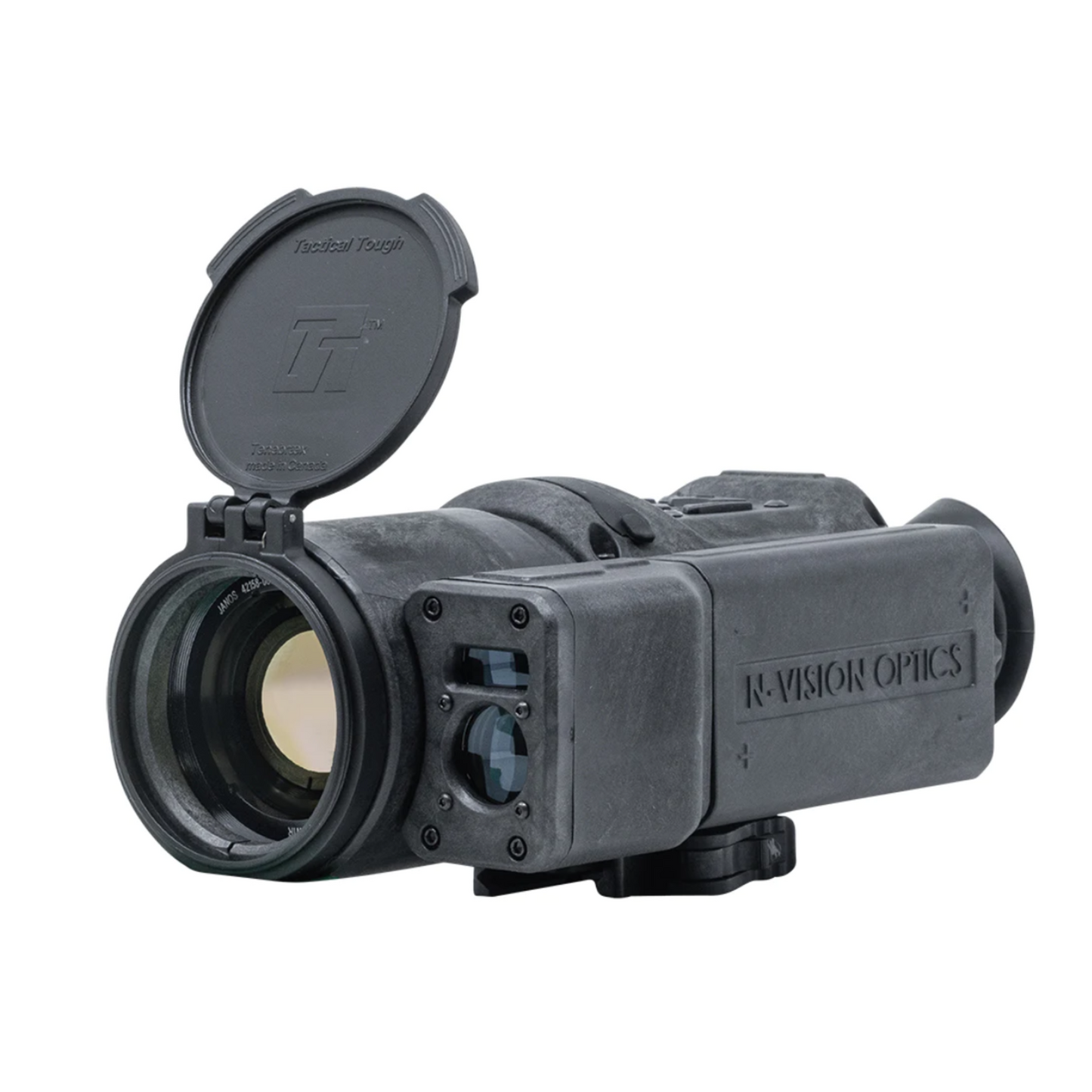

The Halo-XRF combines state of the art BAE thermal imaging CORE with top customer demanded features, such as integrated laser range finder, onboard video recording and WiFi connectivity. HALO-XRF is proudly designed and built in the USA, making it the ultimate US-made thermal scope with integrated LRF available to the hunting market.
| Thermal Sensor |
Sensor Type |
BAE |
| Resolution (pixels) |
640 x 480 |
| Pixel Pitch (µm) |
12 |
| Frame Rate (Hz) |
60 |
| Detection Range (yards) |
2,020 |
| Optics |
Objective Lens (mm) |
50 |
| Magnification Range (x) |
3.5 to 28 |
| Digital Zoom (x) |
1 to 8 |
| Field of View (HxV) @ 100m (degrees / m) |
8.7 x 6.6 |
| Rangefinder |
Rangefinder Type |
Laser Range Finder |
| Maximum Measuring Range (y) |
1,000 |
| Measurement Accuracy (y) |
±1 |
| Display |
Display Type |
OLED |
| Display Resolution (pixels) |
640 × 480 |
| Audio/Video Recording |
Audio Recording Capable |
Yes |
| Video Recording Capable |
Yes |
| Built-in Memory (GB) |
3.6 |
| Wi-Fi |
Wireless Protocol |
Wi-Fi |
| Environmental Characteristics |
Degree of Protection (IP Code) |
IP67 (waterproof)
|
| Power Supply |

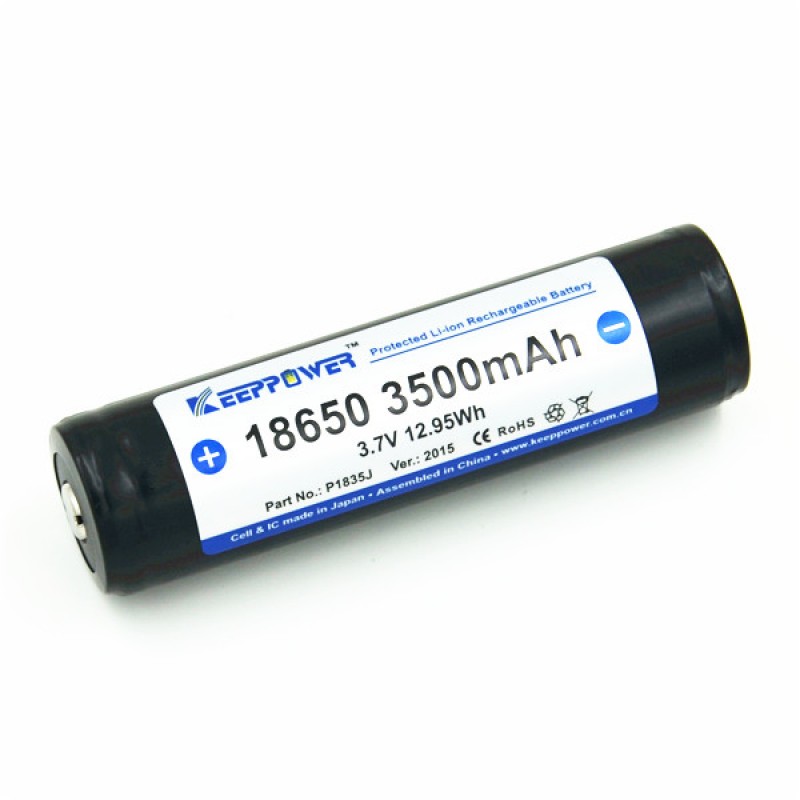

Battery Type |
18650 (2) |
| Operating Time on Battery Pack (hr) |
7 |
| External Power Supply |
5V (Type C USB) |
| Weight & Size |
Dimensions (inch) |
8.9 x 4.1 x 3.4 |
| Weight (lb) |
2.6 |
