Product Highlights
- Resolution (pixels): 3840 × 2160
- Display Resolution (pixels): 1920 × 1080
- Base Magnification (x): 3.5
- Digital Zoom (x): Continuous (0.5x steps) + 1x, 2x, 3x, 4x
- Frame Rate (Hz): 50 (4K), 100 (1080P)

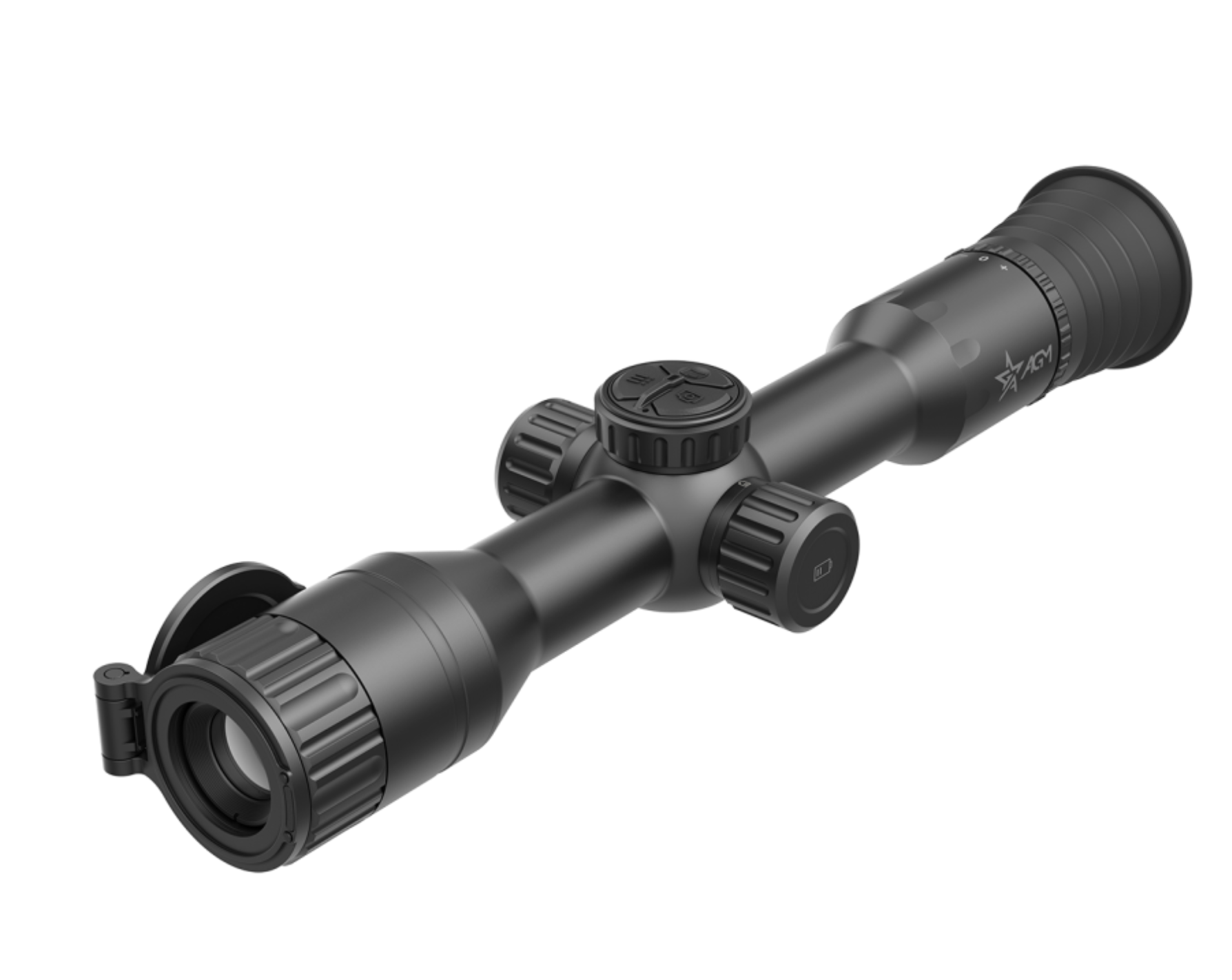

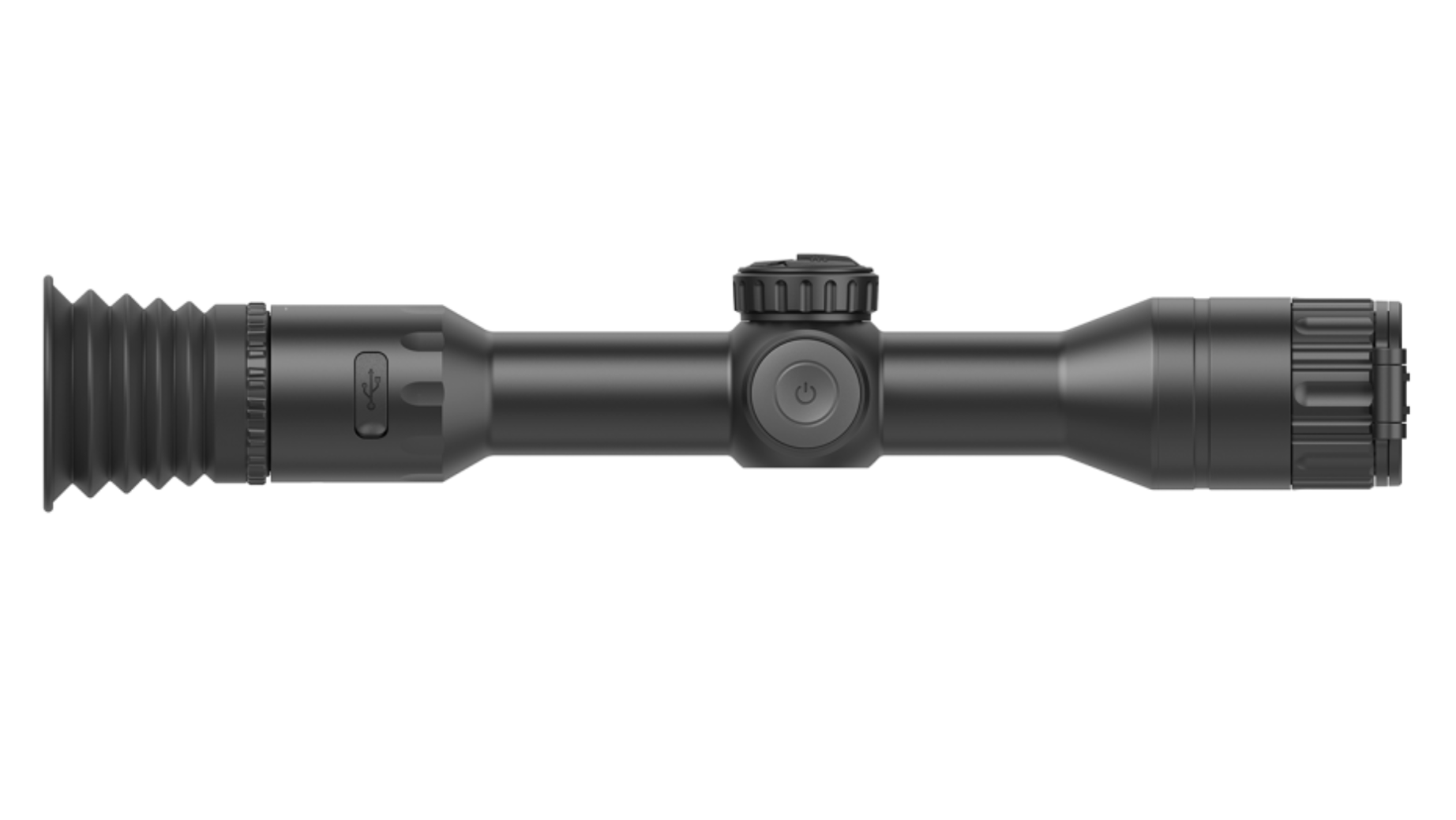

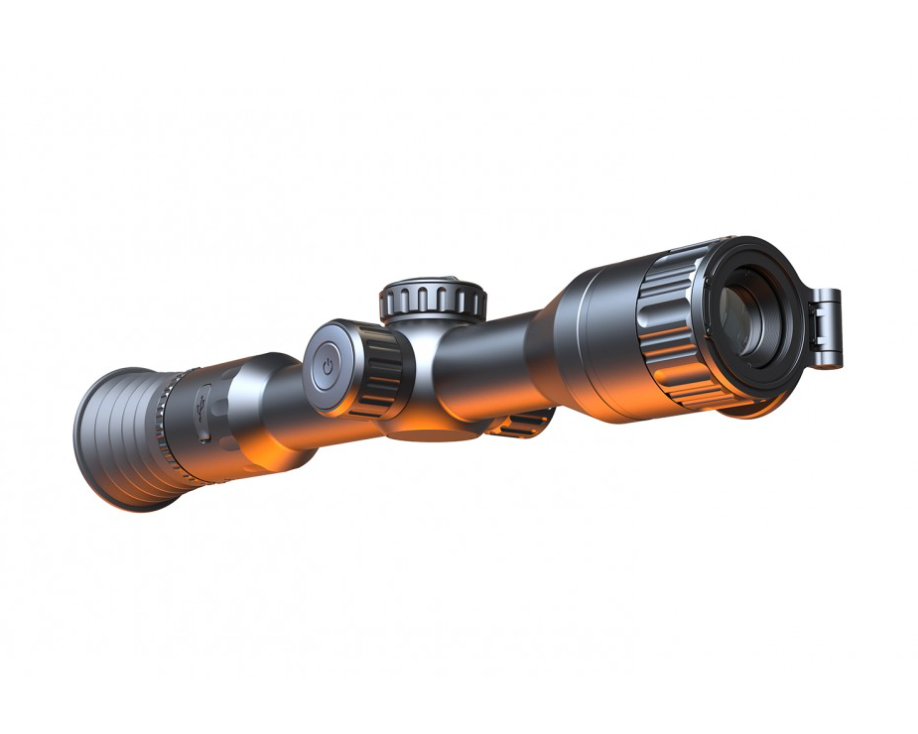

The NEW Spectrum 4K-Mini digital day & night vision scope from AGM packs nearly all the features of the Spectrum LRF 4K (minus the laser rangefinder) into a smaller, lighter body. Built around an ultra-high-definition 3840 × 2160 sensor and a crisp 1920 × 1080 OLED display, the Spectrum 4K-Mini lets users switch between a semi-circular interface and a rectangular interface. It also adds the ability to run up to 100 Hz (1080P) for smoother, more fluid viewing on fast-moving targets. Designed for prime legal daytime hunting hours and the critical minutes around sunrise and sunset, the Spectrum 4K-Mini is powered by a dual power system with a built-in rechargeable battery plus one additional replaceable rechargeable 18650 battery. With up to 7.8 hours of continuous runtime and 32GB internal storage for high-resolution recording, it’s a strong digital optic built for serious time behind the scope.
| Sensor | Resolution (pixels) | 3840 × 2160 |
| Frame Rate (Hz) | 50 Hz (4K), 100 Hz (1080P) | |
| Optics | Magnification | 3.5× - 20.5× |
| Digital Zoom | Support continuous zoom with step 0.5x, 1x, 2x, 3x, 4x | |
| Lens system | 40 mm, F/2.0 | |
| Minimal Focusing Distance | 2 m | |
| Exit Pupil Diameter | 6 mm | |
| Eye relief | 45 mm | |
| Display | Display | 0.49" OLED display, 1920×1080 |
| Field of View | Rectangular display : 10.7° × 6.1° / 18.7m×10.1m @100m; Circular display : 10° × 6.1° / 17.5m×10.1m @100m | |
| Features | Day/Night mode | Yes |
| Shot-Activated Recording | Yes | |
| Picture In Picture Mode (PIP) | Yes | |
| Hotspot | Yes | |
| Reticle | 10 reticles, 8 colors | |
| Distance Measurement | Yes (Stadiametric) | |
| Standby Mode | Yes | |
| Wi-Fi | Yes | |
| AGM Connect App compatibility | Yes | |
| Audio/Video | Video Recording | Yes (1920x1080) |
| Audio Recording | Yes | |
| Snapshot | Yes (1920x1080) | |
| Storage | Built-in EMMC (32 GB) | |
| External Power Supply | 5 VDC/2 A, USB Type-C interface | |
| Data transmission | Wi-Fi | |
| Environmental Characteristics | Protection Level | IP67 |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) | |
| Power Supply | Battery Type | Built-in rechargeable Li-Ion battery and one additional replaceable rechargeable 18650 battery (18650 battery included) |
| Battery Life (Operating) | Up to 7.8 hours continuous running (@ 25°C, WI-FI OFF) | |
| Mounting | Mounting | Standard 30 mm |
| Max. Recoil | 1000 g / 0.4 ms | |
| Diopter Adjustment | -5D to +5D | |
| Weight | 0.45 kg / 1.0 lb (without mount and additional battery) | |
| Weight & Size | Dimensions | 331 × 86 × 67 mm / 13 × 3.4 × 2.5 in (without mount and eye cup) |
Reliable gear designed to perform in the toughest hunting conditions .
