AGM
AGM :: TaipanV2 15-384
AGM :: TaipanV2 15-384
Couldn't load pickup availability
Product Highlights
- Resolution (pixels): 384 × 288
- Pixel Pitch (µm): 12
- NETD (mK): <20
- Base Magnification (x): 1.5
- Digital Zoom: 1 to 8

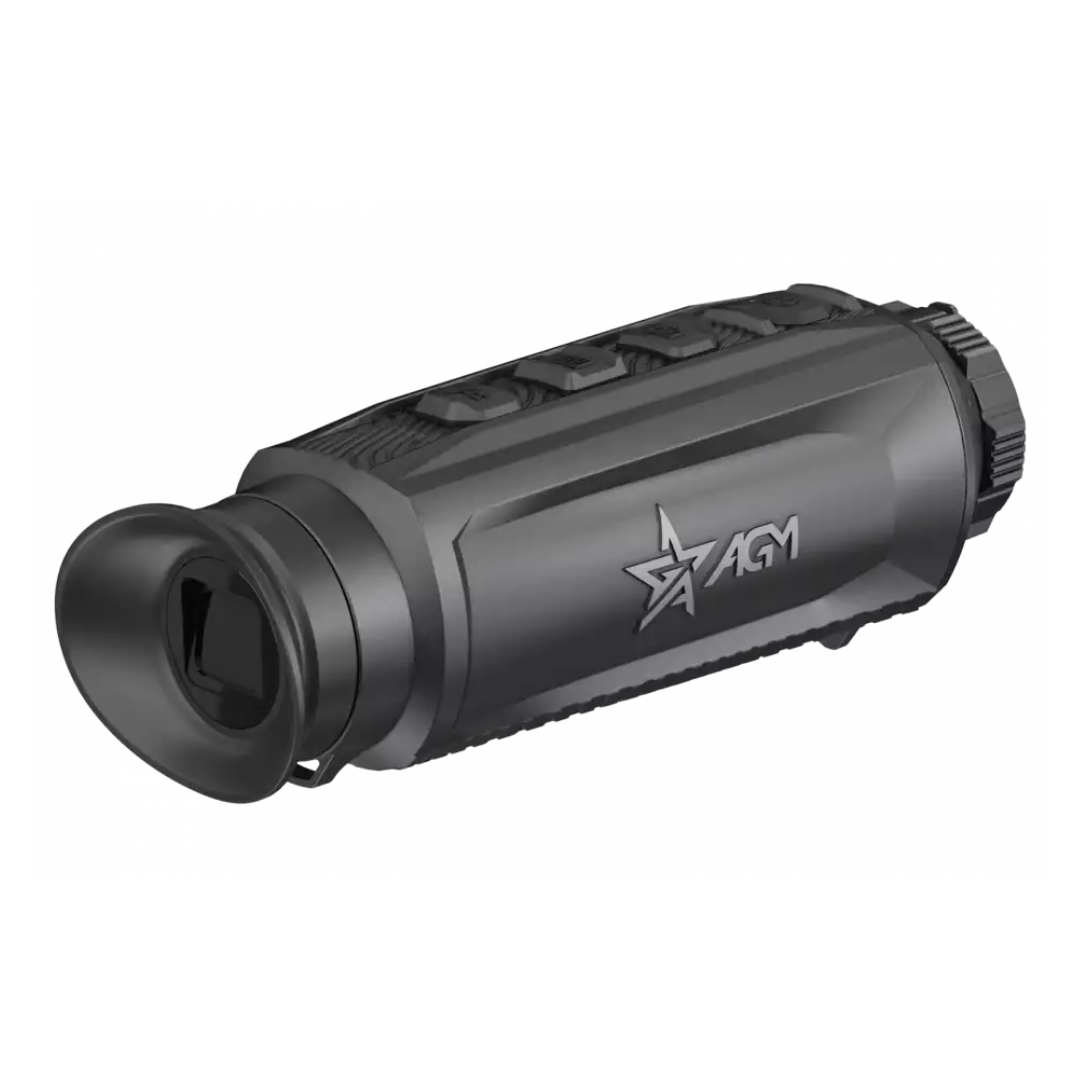

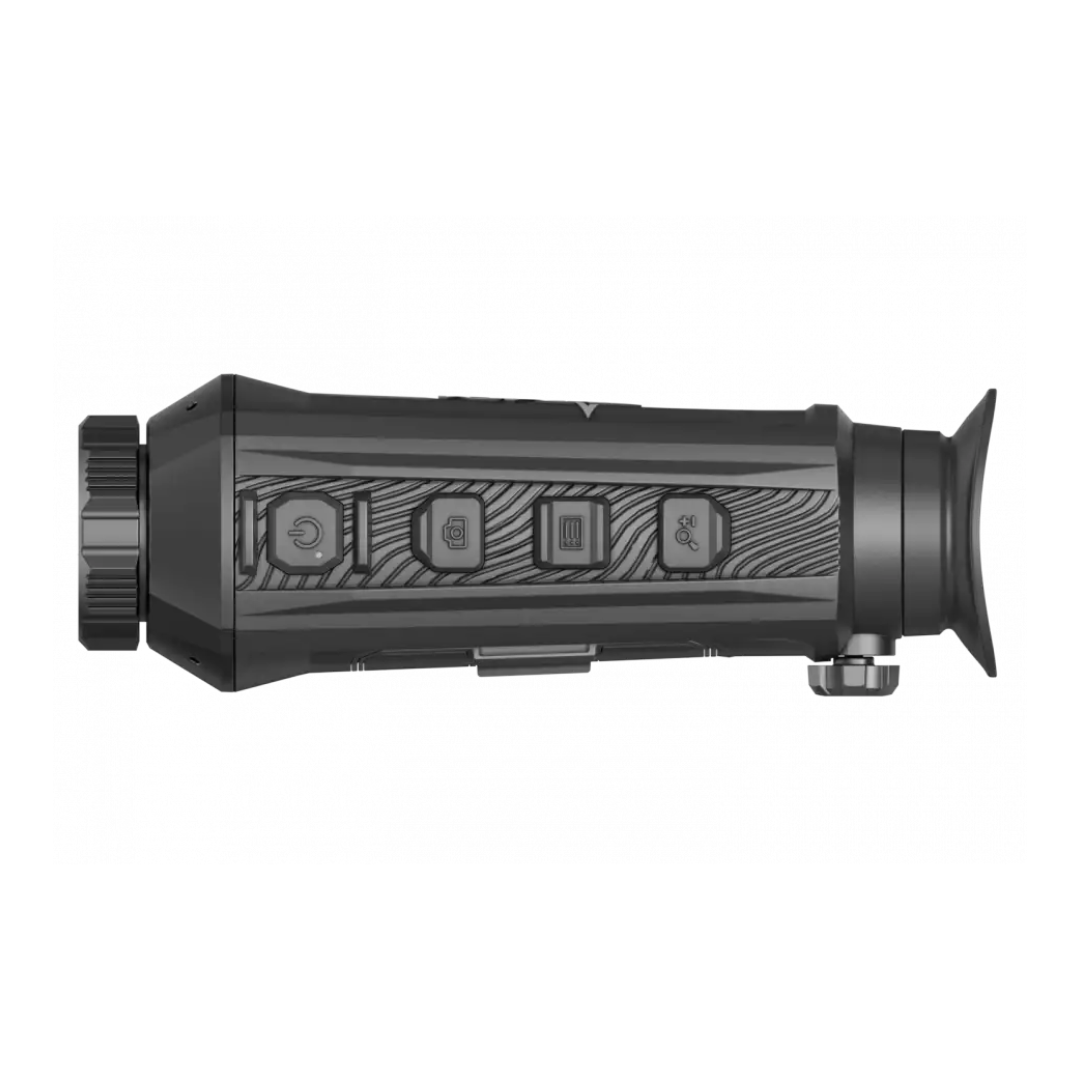

The TaipanV2 thermal monocular series boasts multiple germanium lens sizes which are paired with an industry-leading 384 resolution, 12 micron, sub-20mK thermal detector. The TaipanV2s also bring many new advancements including moving from a non-removable rechargeable internal battery to a single removable rechargeable 18650, a new sub-20mK thermal sensor and a new 90 degree tilt sensor which powers off the display to save battery life.
The TaipanV2 also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: F1.0 aperture optics, 50Hz refresh rate, 16GB of built-in memory, Wi-Fi compatibility to pair with the AGM Connect App, an IP67 waterproof rating, USB Type-C port for external power capabilities and 4 color palettes. They also utilize a wider rubber eyepiece to make viewing the 1024 OLED display extremely comfortable in the field when viewing for long periods of time in a single session. And of course, all TaipanV2 models will come with AGM’s 5 year transferable warranty.
Thermal Sensor | Sensor Type | VOx Uncooled Focal Plane Array |
Resolution (pixels) | 384 × 288 | |
Pixel Pitch (µm) | 12 | |
NETD (mK) | <20 | |
Frame Rate (Hz) | 50 | |
Detection Range (yards) | 853 | |
Optics | Objective Lens (mm) | 15 |
Base Magnification (x) | 1.5 | |
Digital Zoom | 1 to 8 | |
Field of View (HxV) @ 100m (degrees / m) | 17.5 × 13.1 | |
Rangefinder | Rangefinder Type | N/A |
Maximum Measuring Range (y) | N/A | |
Measurement Accuracy (y) | N/A | |
Display | Display Type | OLED |
Display Resolution (pixels) | 1024 x 768 | |
Audio/Video | Audio Recording Capable | Yes |
Video Recording Capable | Yes | |
Built-in Memory (GB) | 16 | |
Wi-Fi | Wireless Protocol | Yes |
Environmental Characteristics |
Degree of Protection (IP Code) | IP67 |
Operating Temperature Range (°F) | -22 to 131 | |
Power Supply | Battery Type | 18650 |
Operating Time on Battery Pack (hr) | 6.5 | |
External Power Supply | 5 (USB-C) | |
Weight & Size | Dimensions (inch) | 6.2 × 2.4 × 2.2 |
Weight (lb) | 0.7 |
